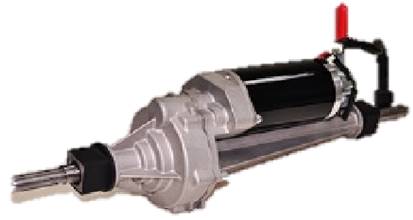

Transaxle Motor

Transaxle_Medium
Contact
Tel:+886-3-598-6951
Email:autoparts@seec.com.tw

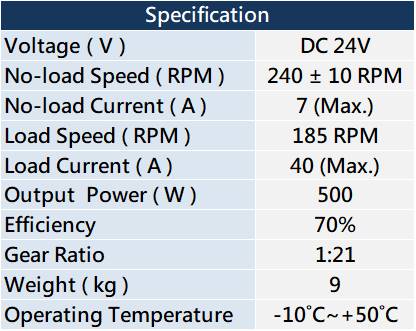

Specification

Voltage

24 V

No Load

7 A MAX

240 ± 10 RPM

0.55 Kg-M  Load

12 A MAX

230 RPM MIN

2.0Kg-M  Load

40 A MAX

185 RPM MIN

Output  Power

500 W

Efficiency

70 %

Brake Torque

30 Kg-cm MIN

Brake   Disengagement

20 V MAX

Brake Release

6 V MAX

Brake Coil   Current

0.6 A MAX

Noise Level

65 dBA MAX from 30 CM

Gear Ratio

1 : 21

Weight

9 Kg APPROX

Operation   Temperature

-10 ~ 50
