Transaxle Motor

Transaxle_Heavy Duty
Contact
Tel:+886-3-598-6951
Email:autoparts@seec.com.tw

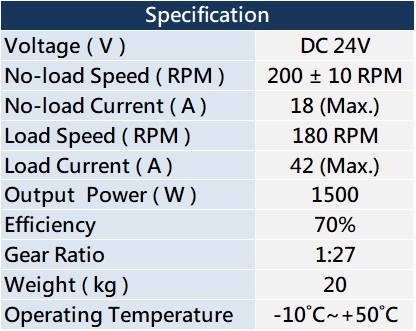

Specification

Voltage

24 V

No Load

18 A   MAX

200   ± 10RPM

1.1 Kg-M  Load

32 A   MAX

185   RPM MIN

2.0 Kg-M  Load

42 A   MAX

180   RPM MIN

Output  Power

1500   W

Efficiency

70 %

Brake Torque

100   Kg-cm MIN

Brake   Disengagement

20 V   MAX

Brake Release

6 V   MAX

Brake Coil   Current

0.9   A MAX

Noise Level

65   dBA MAX from 50 CM

Gear Ratio

1 :   27

Weight

20   Kg APPROX

Operation   Temperature

-10 ℃ ~ 50 ℃
